Components

Radio(iOS)

Boxes for checking and unchecking single values in forms.

Summary

Control for selecting an option inside a form.

default

Accessibility

Set adjustsFontForContentSizeCategory: true (the default) to enable Dynamic Type support for a Radio.

Public API

Radio

class Radio: Control, SimpleControl

Represents only the round button part of the control. Except for very custom UI shouldn’t see direct use.

Some of its basic control API is in common with LabeledRadio.

LabeledRadio

class LabeledRadio, Control, SimpleControl

The full radio control with a label. Can be customized with a more complex content view but needs to always have a label set as its main, which will reflect its disabled state etc.

Full Initializer

Custom initializer, use when you need something more complex than a standard radio control with a simple label next to it.

  • control: Pass in a custom Radio if needed, should be very rarely used.
  • label: The reference label. The radio will be vertically aligned against the center of label’s first line. It will also reflect the radio state.
  • content: Optionally, a view to use as the radio’s content. If not nil, label must be a part of it.
  • adjustsFontForContentSizeCategory: Pass in false if the UI where it will be displayed doesn’t support dynamic font sizes.

public convenience init(text: String? = nil, adjustsFontForContentSizeCategory: Bool = true)

Convenience initializer for the standard radio button theme. The label will be set to a simple Label with .text1 theme.

public var text: String?

Convenience access to the label’s text

public var attributedText: NSAttributedString?

Allows for setting formatted text of the labeled radio’s label. Keep in mind that Thumbprint theming will mostly be ignored if this is set.

public enum LabeledControl.ContentPlacement: CaseIterable { case leading case trailing }

Available values for the contentPlacement property.

public var contentPlacement

Determines on which side of the labeled radio will the label and other content layout.

leading

trailing

public var numberOfLines: Int

Convenience access to the label’s property of the same name. For behavior, look the documentation for UILabel.numberOfLines

public var contentInsets: NSDirectionalEdgeInsets

Allows for larger margins around the labeled radio contents. The additional area will also register touches.

public let label: UILabel

Direct read-only access to the labeled radio’s label. Usually it will be a Thumbprint.Label control but if initialized with custom content it may be a UILabel or a different subclass of it.

public func labelLayoutDidChange()

If the labeled radio’s formatting is modified you should always call this method, it will ensure that the radio button is correctly aligned against it.

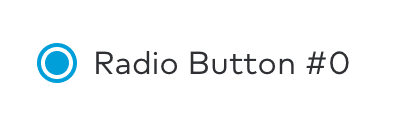

public var isSelected: Bool

Manages selected state

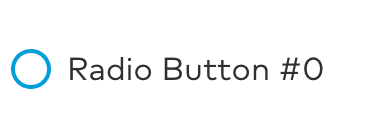

unselected

public var isEnabled: Bool

Manages enabled state

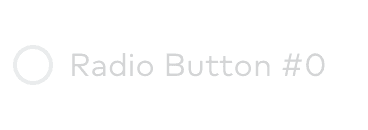

disabled

Usage

The Radio class manages only the graphical radio button itself. The full control with a label (or several) that should be generally used is LabeledRadio. The public API described above works for both classes other than contentPosition which is specific to LabeledControl.

Radio buttons should generally be used within a RadioGroup to control exclusive selection. Components such as RadioStack already set up the radio group for you and should be used wherever possible. To receive updates when the user selects a different radio button, subscribe to RadioGroup.selection.

Example

import Combine
/* ... */
let titles = ["Apple", "Banana", "Orange"]
let radioStack = RadioStack(titles: titles, adjustsFontForContentSizeCategory: adjustsFontForContentSizeCategory)
radioStack.delegate = self
view.addSubview(radioStack)
/* ... */
radioStack.radioGroup.selection
.receive(on: RunLoop.main)
.sink { [weak self] selection in
self?.radioStackDidSelectRadioAt(index: selection)
}
.store(in: &subscriptions)
